High Precision & Smooth Linear Motion
SFU ball screws deliver exceptionally smooth and accurate linear movement thanks to precision-ground screw shafts and preloaded ball nuts. This design minimizes friction and ensures excellent positioning accuracy, making them ideal for CNC machines, automation equipment, and high-precision industrial applications.
Backlash-Free Preloaded Nut Design
Each SFU ball screw comes with a medium-preload ball nut that effectively eliminates backlash. This ensures stable motion control, higher machining accuracy, and improved repeatability, especially in applications requiring tight tolerance and zero lost motion.
Long Service Life & Optimized Durability
Manufactured from hardened alloy steel and engineered with optimized ball circulation, SFU ball screws achieve superior wear resistance and long operational life. The integrated oil hole design allows convenient lubrication, reducing maintenance effort while ensuring long-term reliable performance.

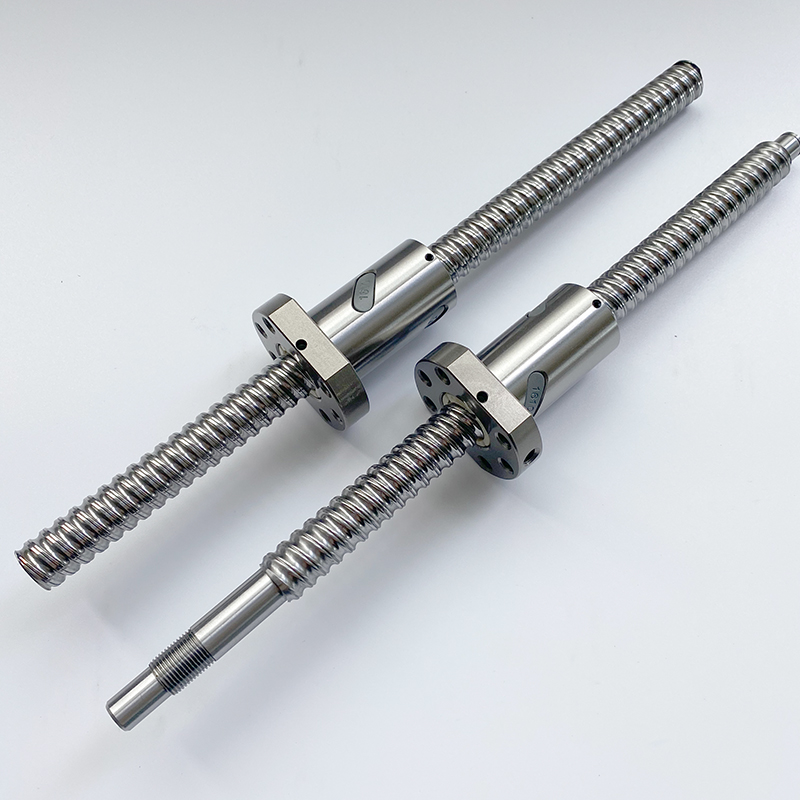

Ball Screw
Ball screws for linear drives,e.g. for CNC machines. The nut is backlash-free due to a medium preload. Ends are premachined to fit fixed bearing(BK and FK series) and floating bearing(BF and FF series).
CNC Machinery & Precision Automation
SFU ball screws are widely used in CNC routers, milling machines, lathes, and engraving equipment. Their high accuracy and zero-backlash design ensure stable feed motion, precise positioning, and superior cutting quality.
Industrial Robots & Linear Actuators
With smooth linear transmission and high load-bearing capability, SFU ball screws are ideal for robotic arms, industrial manipulators, and automated production lines. They provide efficient motion control for tasks requiring repeatability and durability.
Medical, Semiconductor & Inspection Equipment
The low-friction and high-precision characteristics of SFU ball screws make them suitable for medical imaging devices, semiconductor manufacturing tools, and precision measuring instruments. They enable consistent micro-positioning for high-end industrial applications.
Why Choose Our Ball Screw?
Engineered for high precision, zero-backlash performance,
and long-term reliability in demanding CNC and automation systems.
Superior Accuracy & Backlash-Free Operation
Our ball screws feature precision-ground shafts and preloaded ball nuts that eliminate backlash and ensure smooth, accurate linear motion. This guarantees consistent performance in CNC machining, robotic systems, and high-precision positioning applications.
Robust Construction for Long Service Life
Made from hardened alloy steel and designed with optimized ball circulation, our ball screws offer exceptional wear resistance and durability. They maintain stable performance under high load, high speed, and continuous operation environments.

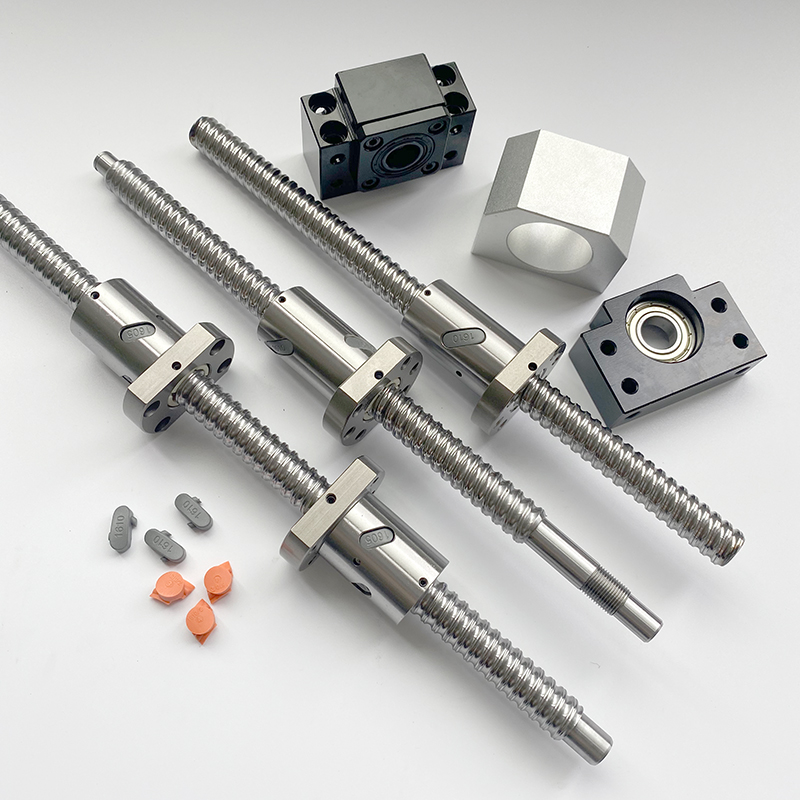

Easy Installation with Machined Shaft Ends
Each screw comes with premachined ends compatible with BK, BF, FK, and FF bearing supports, making installation fast and reliable. This ensures better alignment, reduced assembly time, and improved long-term system stability.
Technical Specifications
Complete specifications and dimensional data to help you
select the right ball screw for your CNC and automation needs.

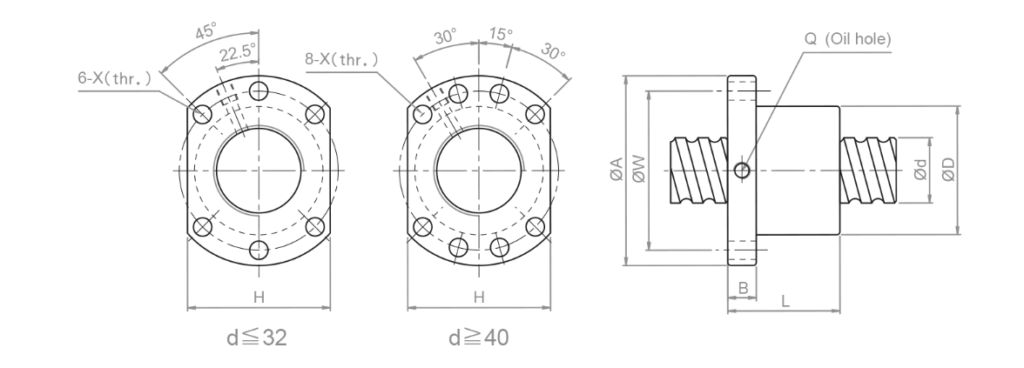

| Model No. | d (mm) | l (mm) | Da (mm) | D (mm) | A (mm) | B (mm) | L (mm) | W (mm) | H (mm) | X (mm) | Q | n | Ca (kgf) | Coa (kgf) | K (kgf/μm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SFU01204-4 | 12 | 4 | 2.5 | 24 | 40 | 10 | 40 | 32 | 30 | 4.5 | 1x4 | 902 | 1884 | 26 | |
| SFU01604-4 | 16 | 4 | 2.381 | 28 | 48 | 10 | 40 | 38 | 40 | 5.5 | M6 | 1x4 | 973 | 2406 | 32 |
| SFU02004-4 | 20 | 4 | 2.381 | 36 | 58 | 10 | 42 | 47 | 44 | 6.6 | M6 | 1x4 | 1066 | 2987 | 38 |
| SFU02504-4 | 25 | 4 | 2.381 | 40 | 62 | 10 | 42 | 51 | 48 | 6.6 | M6 | 1x4 | 1180 | 3795 | 43 |
| SFU02506-4 | 25 | 6 | 3.969 | 40 | 62 | 10 | 54 | 51 | 48 | 6.6 | M6 | 1x4 | 2318 | 6057 | 47 |
| SFU02508-4 | 25 | 8 | 4.762 | 40 | 62 | 10 | 63 | 51 | 48 | 6.6 | M6 | 1x4 | 2963 | 7373 | 49 |
| SFU03204-4 | 32 | 4 | 2.381 | 50 | 80 | 12 | 44 | 65 | 62 | 9 | M6 | 1x4 | 1296 | 4838 | 51 |
| SFU03206-4 | 32 | 6 | 3.969 | 50 | 80 | 12 | 57 | 65 | 62 | 9 | M6 | 1x4 | 2632 | 7979 | 57 |
| SFU03208-4 | 32 | 8 | 4.762 | 50 | 80 | 12 | 65 | 65 | 62 | 9 | M6 | 1x4 | 3387 | 9622 | 60 |
| SFU04006-4 | 40 | 6 | 3.969 | 63 | 93 | 14 | 60 | 78 | 70 | 9 | M6 | 1x4 | 2873 | 9913 | 66 |
| SFU04008-4 | 40 | 8 | 4.762 | 63 | 93 | 14 | 67 | 78 | 70 | 9 | M6 | 1x4 | 3712 | 11947 | 70 |
| SFU05020-4 | 50 | 20 | 7.144 | 75 | 110 | 16 | 138 | 93 | 85 | 11 | M8 | 1x4 | 7142 | 22588 | 94 |
| SFU06320-4 | 63 | 20 | 9.525 | 95 | 135 | 20 | 149 | 115 | 100 | 13.5 | M8 | 1x4 | 11444 | 36653 | 112 |
| SFU08020-4 | 80 | 20 | 9.525 | 125 | 165 | 25 | 154 | 145 | 130 | 13.5 | M8 | 1x4 | 12911 | 47747 | 138 |
| SFU10020-4 | 100 | 20 | 9.525 | 150 | 202 | 30 | 180 | 170 | 155 | 17.5 | M8 | 1x4 | 14303 | 60698 | 162 |
